Greentour

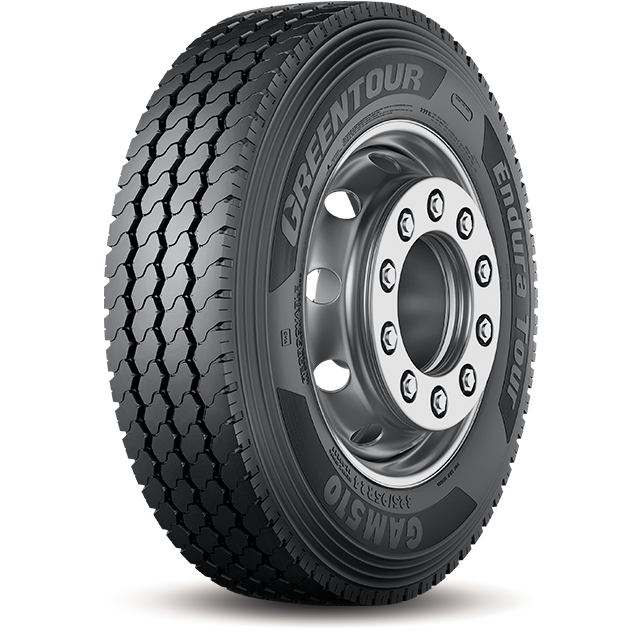

EnduraTour GAM510/GAM510+

All-position tire for on & off road application

Application

On & Off Road

All Position

Recommend

EnduraTour GAM510/GAM510+

Overview
Features
Spec

All-position tire for on & off road application

Performance and Durability

Widened Tread

The widened tread and optimized contact patch ensure more even pressure distribution across the crown, enhancing wear resistance and providing excellent stability during long-distance driving.

Optimized Shoulder Design

The shoulder features a small opening design, which maintains shoulder strength while reducing heat buildup, making it suitable for short-distance, high-speed driving.

Optimized Crown Rigidity

The crown is reinforced with high-strength steel, enabling it to withstand impacts from uneven, unpaved roads during regional transportation.

Durability and Cost-Efficiency

Safety and Comfort

Enhanced Braking Performance: The S-shaped tread blocks improved the braking effectiveness of the tread, while reducing stopping distance.

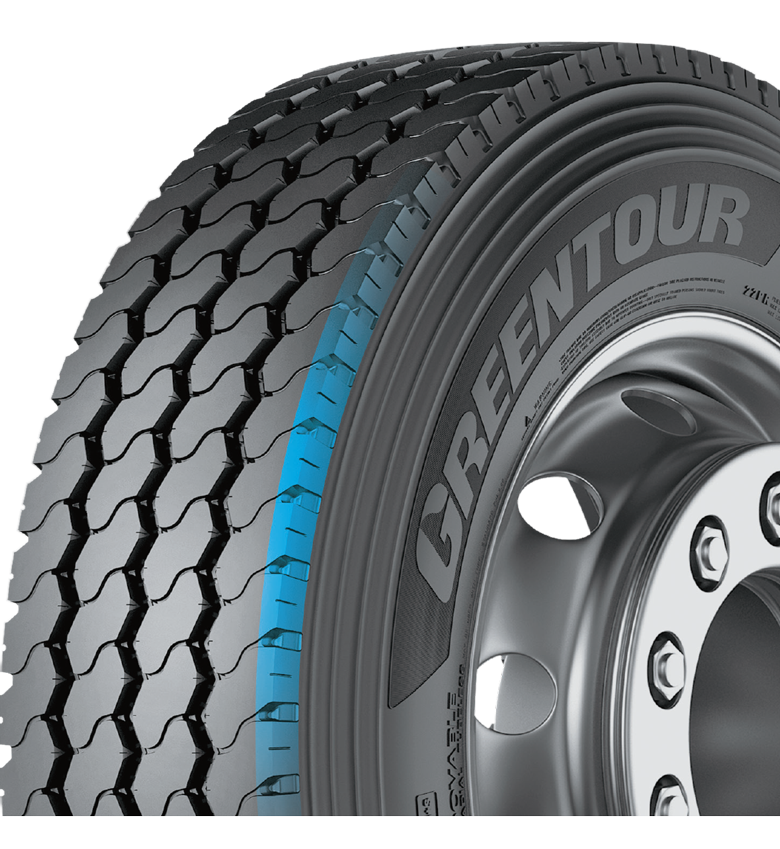

Enhanced Sidewall Protection

The reinforced sidewall design reduces damage from scrapes and impacts.

High Impact Resistance

The reinforced tire structure, combined with high-strength steel belts enhances load capacity, and protects the tire from potential impact damage.

Efficiency and Adaptability

Wide Adaptability

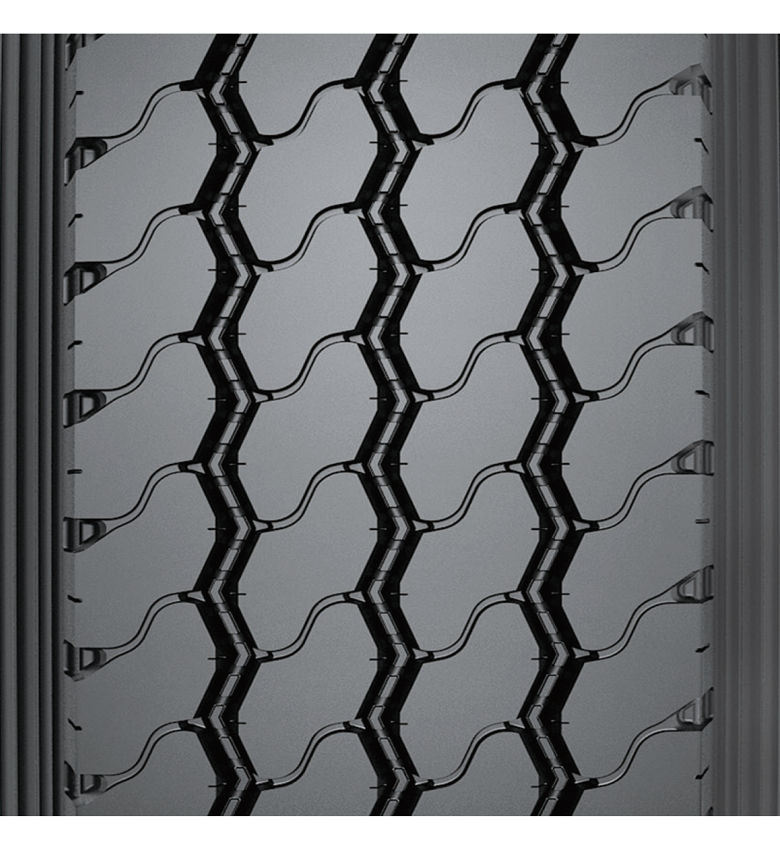

The tread features a hybrid three-line design, making it suitable for a variety of road surfaces, from urban to rural environments.

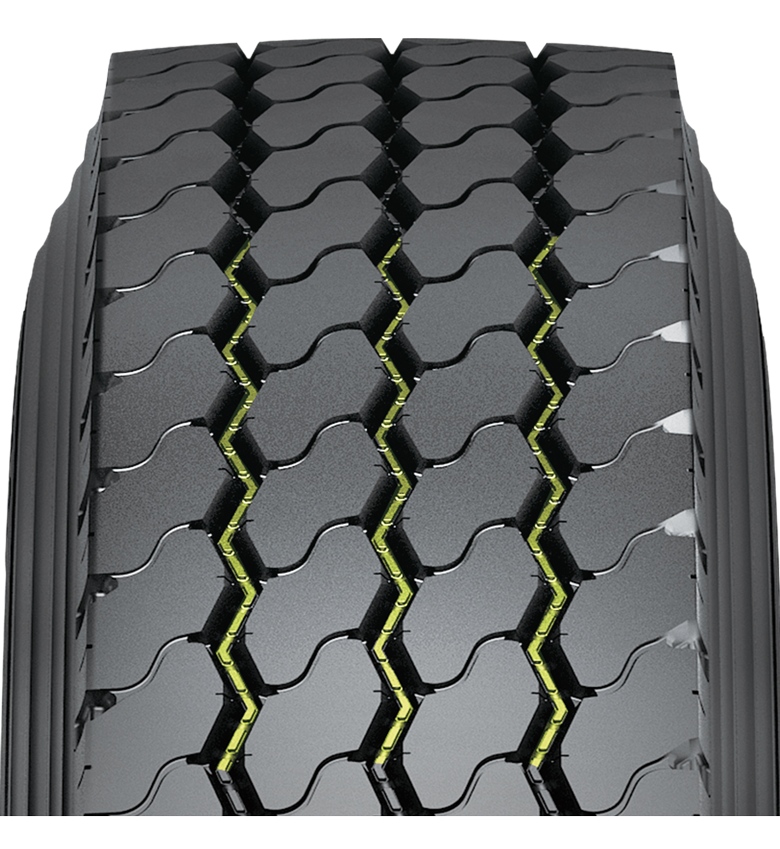

Stone Ejector Design

Each of the three tread grooves is equipped with a stone ejector design, reducing the risk of puncture damage from sharp objects in adverse road conditions.

Wet Traction Design

Each tread block is reinforced with steel plates on both ends, effectively enhancing performance on wet surfaces.

Specification

Size	PR	LI/SS	Type	Tread Depth		Standard Rim	Overall Diameter		Section Width		Load				Pressure				Plant
Size	PR	LI/SS	Type	(mm)	(32nds)	(inch)	(mm)	(in)	(mm)	(in)	S(kg)	D(kg)	S(lbs)	D(lbs)	S(KPa)	D(KPa)	S(psi)	D(psi)	Plant
11R22.5 (GAM510)	16	148/145K	TL	17.0	21	8.25	1050	41.34	279	10.98	3150	2900	6940	6395	850	850	123	123	CN
11R22.5 (GAM510)	18	149/146J	TL	17.0	21	8.25	1050	41.33	279	11	3250	3000	7160	6610	900	930	135	135	CN
12R22.5 (GAM510)	18	152/149K	TL	16.0	20	9.00	1085	42.72	300	11.81	3550	3250	7830	7160	930	930	135	135	CN
12.00R24 (GAM510)	20	160/156K	TT	15.5	20	8.5	1238	48.74	315	12.4	4500	4000	9920	8820	850	850	125	125	CN
13R22.5 (GAM510+)	18	156/150K	TL	17.5	22	9.75	1124	44.25	320	12.6	4000	3350	8820	7385	875	875	125	125	VN
13R22.5 (GAM510)	20	156/153K	TL	18.0	23	9.75	1124	44.25	320	12.6	4000	3650	8820	8050	930	930	135	135	CN
295/80R22.5 (GAM510+)	18	154/149K	TL	17.0	21	9.00	1044	41.1	298	11.73	3750	3250	8270	7160	850	850	123	123	VN
315/80R22.5 (GAM510+)	18	156/150L (154/150M)	TL	16.5	21	9.00	1076	42.36	312	12.28	4000	3350	8820	7385	850	850	125	125	VN
315/80R22.5 (GAM510)	20	156/153K	TL	16.0	20	9.00	1076	42.36	312	12.28	4000	3650	8820	8050	850	850	125	125	CN
325/95R24 (GAM510)	22	162/160K	TT	15.5	20	9.00	1228	48.35	325	12.8	4750	4500	10500	9920	850	850	125	125	CN/VN
